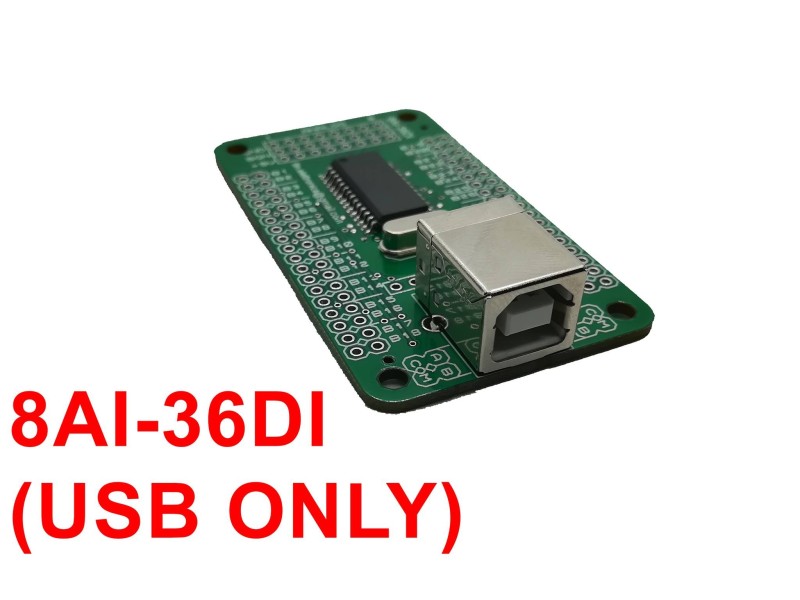

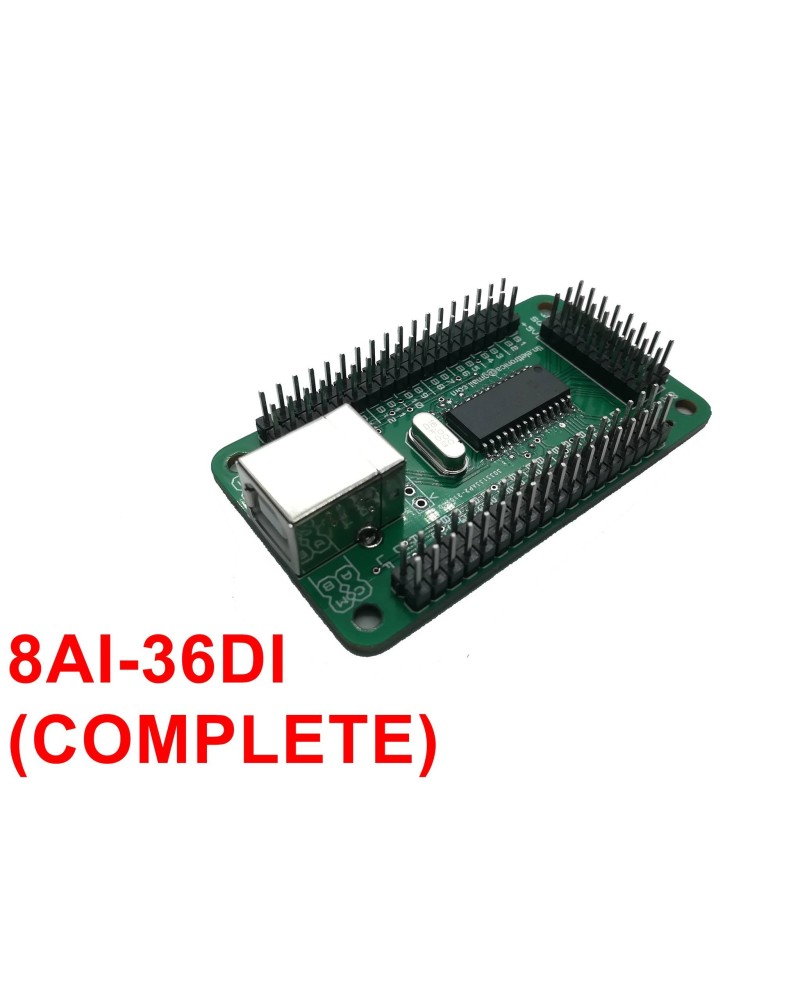

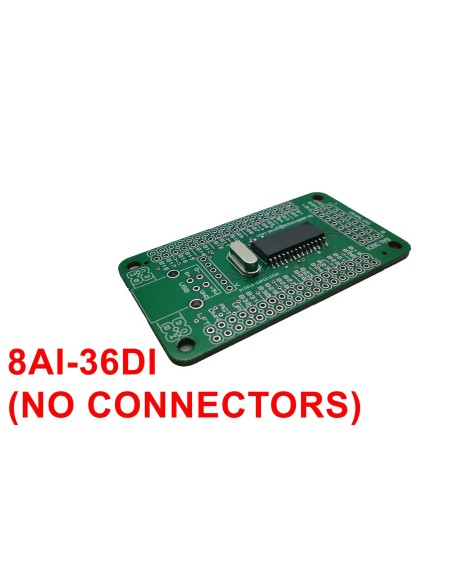

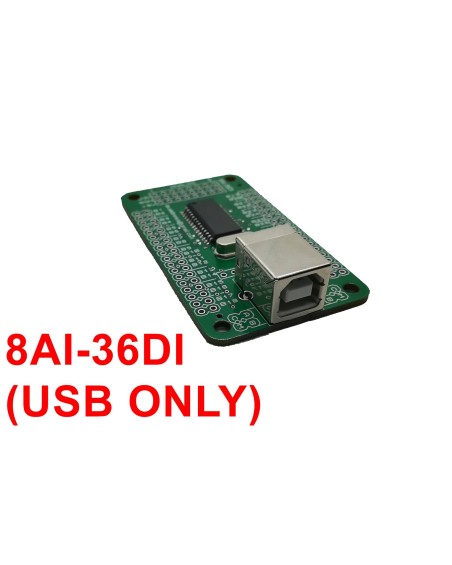

8AI-36DI Interface Board Card

Main Features:

• Compact Design: 66mm x 29mm, ideal for tight spaces in your projects.
• Plug-and-Play: Easy connection with USB Type B for quick setup.
• Wide Compatibility: Supports buttons, switches, potentiometers, rotary encoders, and more.
• Customizable Inputs: 8 analog inputs and up to 36 digital inputs for versatile use.
• Flexible Integration: Use with HAT switches and other control components.

Technical Specifications:

• Analog Inputs: 8
• Digital Inputs: 36 (buttons, switches, or up to 16 rotary encoders)
• Connector: USB Type B
• Board Dimensions: 66mm x 29mm
• Compatibility: Compatible with various devices like switches, sensors, potentiometers, and more.

Ideal For:

• Creating custom control panels with buttons and switches.
• Projects requiring multiple input devices such as encoders, sensors, and potentiometers.
• Compact setups where space is limited, but input flexibility is needed.

Instructions:

Simply connect the board to your system using the USB Type B connector and install the appropriate drivers. Once connected, configure your inputs through the provided software, and you’re ready to integrate your components.
