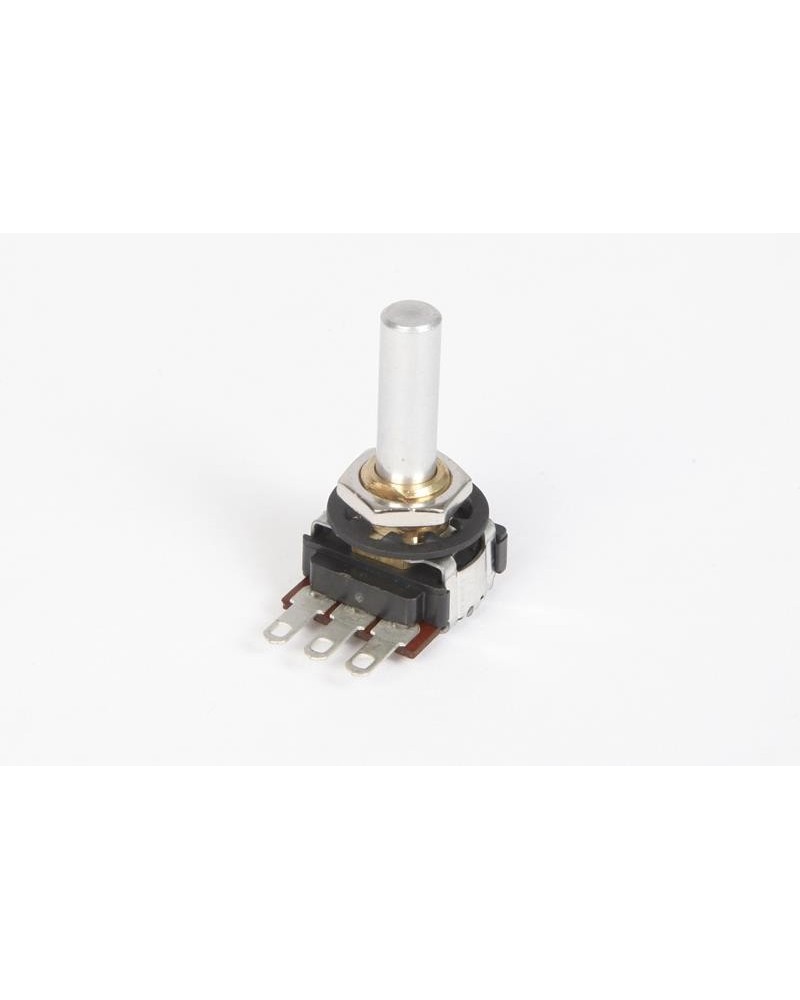

Rotary Encoder With Push Button CTS288V short shaft

Main Features:

• Compact Design: Smaller version of the CTS288V encoder, offering the same high performance in a more compact form.
• Encoder Options: Available in 2-bit incremental or 4-bit absolute configurations for flexible input control.
• Push Button Integration: Built-in momentary push button for additional input functionality.
• Detent Positions: 16 detents per revolution provide tactile feedback and precise adjustments.
• Continuous Rotation: 360-degree rotation without limits for smooth control.
• Mounting Flexibility: Compatible with bushings and available with solder lug or PCB terminals.
• RoHS Compliant: Meets environmental and safety standards for electronics.

Technical Specifications:

• Shaft Diameter: 1/4 inch (6.35mm)
• Shaft Length: Short version for compact designs
• Detents per Revolution: 16 detents, 1 pulse per detent
• Rotational Life: Rated for 50,000 cycles, ensuring long-lasting durability
• Contact Resistance: ≤0.05Ω (initial)
• Insulation Resistance: DC 500V-1000MΩ minimum
• Voltage Rating: 150mA at 250VAC/DC, 300mA at 110VAC/DC

Ideal For:

• Consumer electronics where space-saving and precise control are essential
• Industrial and commercial applications needing a robust, compact encoder
• Electronics projects with limited space for controls but requiring high functionality
• Instrumentation and communication devices that benefit from integrated push button and rotary control
